Streamlining Data Transfer with DTOs and MapStruct in JavaUserManagerAPI

Introduction

In the JavaUserManagerAPI project, we recently shifted our focus toward improving the robustness of our data layer. Previously, our internal entity objects were directly exposed in the API layer. This approach creates tight coupling between our database schema and our public-facing contract. To resolve this, we introduced Data Transfer Objects (DTOs) and automated mapping logic.

The Challenge: Tight Coupling

Exposing database entities via API controllers is like allowing visitors to walk directly into your kitchen while you are cooking; they see the mess, the ingredients, and the storage layout. By using DTOs, we introduce a "waiter" that brings only the necessary information to the user, keeping the internal storage private and decoupled.

Step 1: Defining the DTO

We started by defining clean, immutable DTOs that represent exactly what the client should see.

public record UserRegistrationDTO(
    @NotBlank String username,
    @Email String email
) {}

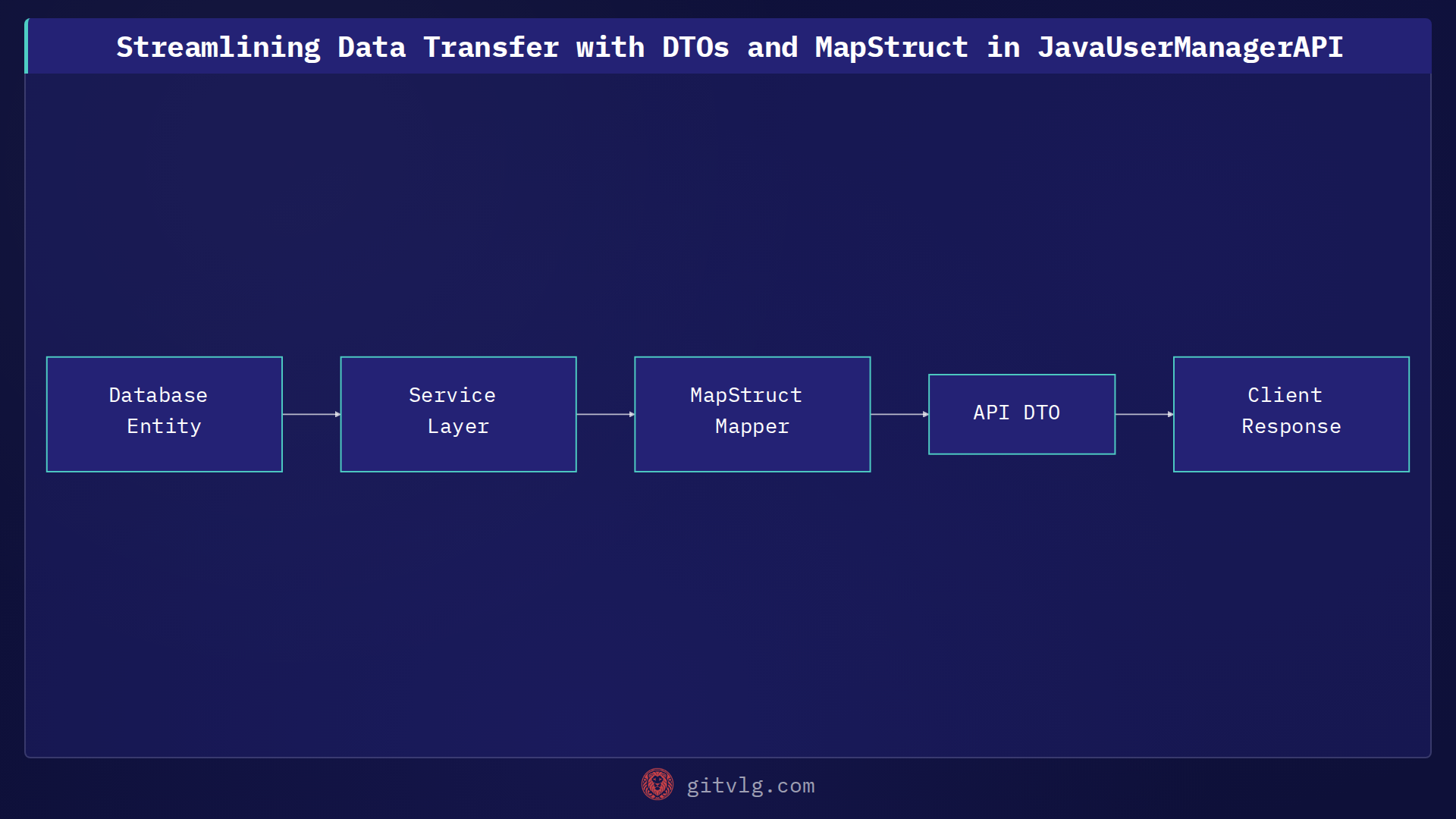

Step 2: Automating Mappings with MapStruct

Manually converting entities to DTOs is tedious and error-prone. We implemented MapStruct to generate this boilerplate code during the compilation phase.

@Mapper(componentModel = "spring")
public interface UserMapper {
    UserDTO toDTO(UserEntity entity);
    UserEntity toEntity(UserRegistrationDTO dto);
}

Step 3: Enforcing Validation

By leveraging Spring's validation framework alongside our new DTOs, we ensure that incoming data is sanitized before it ever reaches our service layer, keeping our Repository Pattern implementation focused purely on data persistence.

Results

This refactor has significantly improved our API's maintainability. By isolating our Hibernate entities from external requests, we can now evolve our database schema without breaking existing API contracts. The codebase is now cleaner, safer, and follows industry standard design patterns.

Takeaway

Start decoupling your persistence layer today by mapping your entities to DTOs. If you are using Spring Boot, integrate MapStruct to handle the conversion automatically and save yourself from writing repetitive "getter-setter" code.
